Radiosondes may operate at a radio frequency of 403 MHz or 1680 MHz and both types may be adjusted slightly higher or lower as required.

RADIOSONDES

Model Nber: RAD001

Contact us for more Details about our RadioSondes.

email: gci@chinahong.com

Weather Balloons or Meteorological Balloons are used in the measurement and evaluation of mostly upper atmospheric conditions. Information may be gathered during the vertical ascent of the balloon through the atmosphere or during its motions once it has reached a predetermined maximum altitude.

Weather Balloons General Information

Today, atmospheric information is most often gathered by height-finding radar, remote sensing by earth-orbiting or stationary satellites, and aircraft instruments, with weather balloons augmenting the data. Helium, which is less dense than air (see buoyancy), is usually used to inflate weather balloons. A pilot balloon is a small balloon (diameter c.1 m/39 in.) whose ascent is followed visually to obtain data for the computation of the speed and direction of winds at different altitudes. A smaller ceiling balloon is used to determine the altitude of cloud bases. A much larger, teardrop-shaped balloon is used to carry a radiosonde aloft. The balloon expands as it rises, usually reaching an altitude of at least 90,000 ft (27,400 m) before it bursts. A small parachute lowers the instruments to the ground. Teardrop-shaped balloons are also used for horizontal sounding of the atmosphere. Atmospheric pressure, temperature, and humidity information may be sent by radio from a balloon; monitoring of its movement provides information about winds at its flight level. Techniques also have been developed whereby many horizontal sounding balloons can be monitored by earth-orbiting satellites that relay information to earth-based stations. The tetroon is a tetrahedral balloon used for horizontal sounding. It was developed to withstand the extremely low pressures of high-altitude flight; the straight seals joining its four triangular faces are stronger than the curved seals of the more traditionally shaped balloons. Tetroons have been used extensively in tracing low-level atmospheric currents by following their movement with radar; they have thus increased the meteorologist’s understanding of atmospheric turbulence, low-level vertical motions, and air pollution dispersion.

Do not hesitate to contact us to review our Meteorological Balloons Prices & Specifications

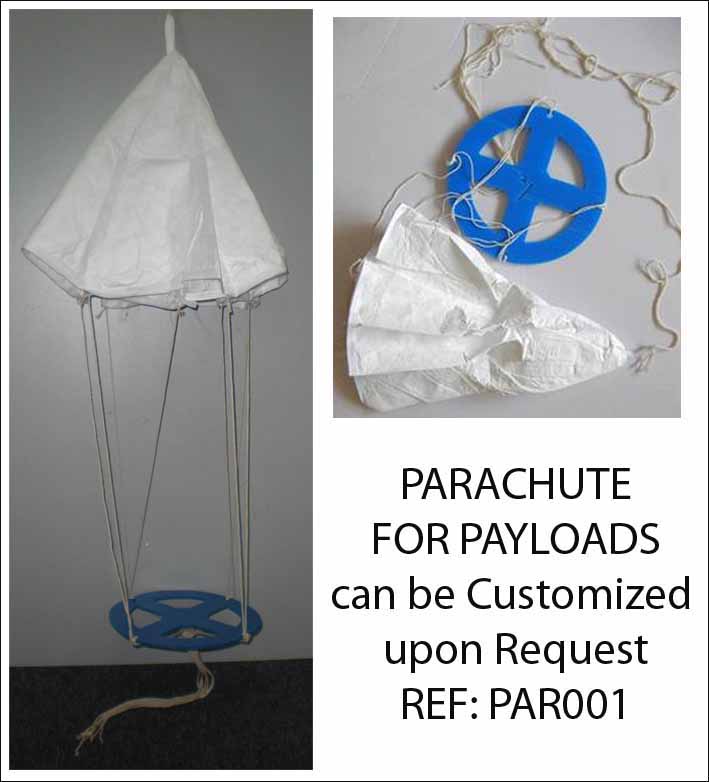

PARACHUTE FOR PAYLOADS

Model nber: PAR001

Material: Tyvek White Colour + Cotton Rope

and Plastic Disk / GW: 70g

Parachutes are Customizable upon request!

MOQs: 1000pcs

CONTACT US FOR PRICES!

email: gci@chinahong.com

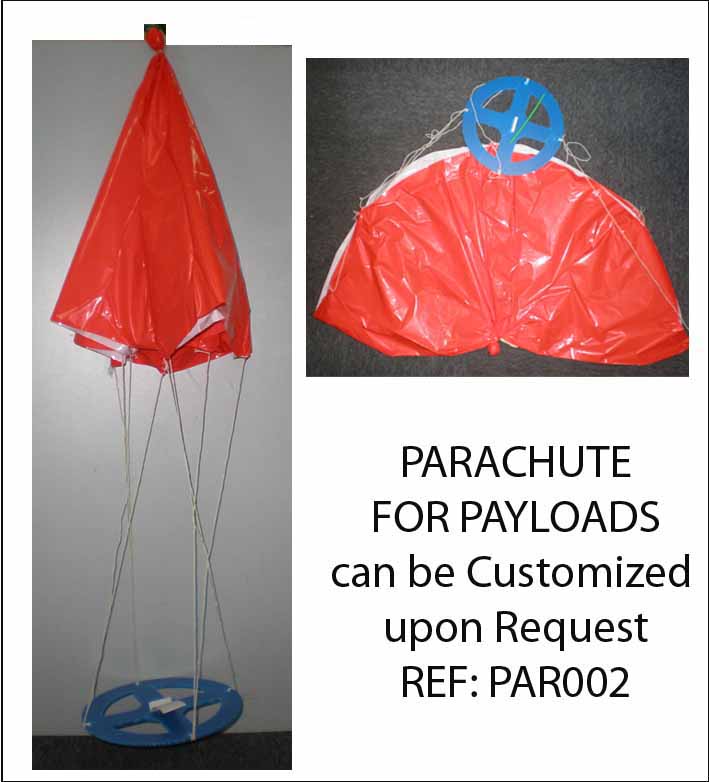

PARACHUTE FOR PAYLOADS

Model nber: PAR002

Material: Plastic Red Colour + Cotton Rope

and Plastic Disk / GW: 70g

Parachutes are Customizable upon request!

MOQs: 1000pcs

CONTACT US FOR PRICES!

email: gci@chinahong.com

Our Anemometers are specially designed for various large mechanical equipments. It uses IC as control core and digital communication technology, providing high stability, strong anti-interference capability and high precision inspection. Wind cup is made of special material with high mechanical strength and strong anti-wind ability. Specially designed controller features good appearance, durability and ease of mount (NO debug) and operation. All electrical interfaces comply with international standard. It’s ideal for many different applications.

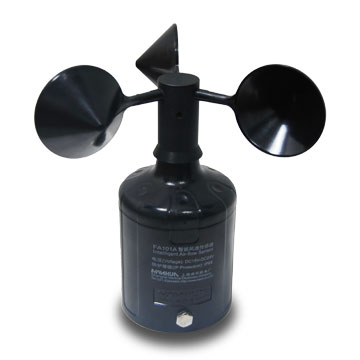

ANEMOMETER / FA101

MOQs: 150pcs

Contact us for Prices!

email: gci@chinahong.com

———————————————————————————————————————————

WIND VANE & ANEMOMETER / FA110

MOQs: 150pcs

Contact us for Prices!

email: gci@chinahong.com

———————————————————————————————————————————

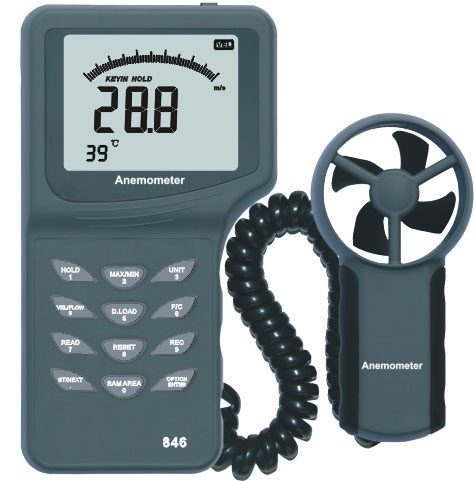

DIGITAL ANEMOMETER / Ref: 826

Temp: -20 / +60°C  – Humidity: 10 to 90%

MOQs: 150pcs

Contact us for Prices!

email: gci@chinahong.com

A Wind sock or Wind cone is a conical textile tube designed to indicate wind direction and relative wind speed.   Windsocks typically are used at airports and at chemical plants where there is risk of gaseous leakage. They are sometimes located alongside highways at windy locations.

Wind direction is the opposite of the direction in which the windsock is pointing (note that wind directions are conventionally specified as being the compass point from which the wind originates; so a windsock pointing due north indicates a southerly wind). Windspeed is indicated by the windsock’s angle relative to the mounting pole; in low winds, the windsock droops; in high winds it flies horizontally.

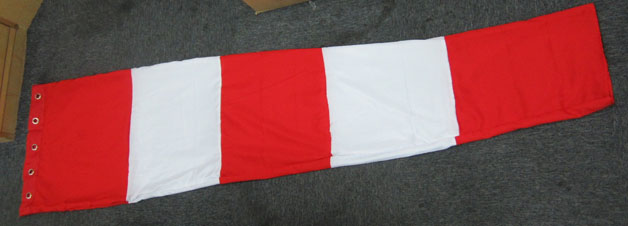

WIND SOCKS

We Manufacture Windsocks upon Client’s request.

Please let us know your Windsock Dimensions

(Apex Size x Throat Size x Lenght)

and also the Colours requested.

email: gci@chinahong.com

Click here to see our PRODUCT RANGE

A weather station is a facility with instruments and equipment for observing atmospheric conditions to provide information for weather forecasts and to study the weather and climate. The measurements taken include temperature, barometric pressure, humidity, wind speed, wind direction, and wind precipitations amounts. Wind measurements are taken as free of other obstructions as possible, while temperature and humidity measurements are kept free from direct solar radiation, or insolation. Manual observations are taken at least once daily, while automated observations are taken at least once an hour.

Information about Ceiling Balloons

The Ceiling Balloon is the smallest size of weather balloon. This balloon is mostly used by meteorologists to determine the height of the base of clouds above ground level during daylight hours. The principle behind the ceiling balloon is a balloon with a known ascent rate (how fast it climbs) and determining how long the balloon rises until it disappears into the cloud. Ascent rate times ascent time yields the ceiling height.

How are Ceiling Balloons used?

A ceiling balloon is a small, usually red, (fluted) rubber balloon commonly measuring 76 mm (3 in) across prior to inflation, inflated to ~40 cm diameter. After inflation the balloon is taken outside and released. By timing the balloon from release until it enters the cloud a ceiling height can be obtained. When correctly inflated the balloon will rise at rate of 140 m/min (460 ft/min). The bases of clouds are very rarely flat and solid, so the ceiling height is not when the balloon disappears but when the colour begins to fade. The balloon can also be used to measure the vertical visibility into a layer of fog or blowing snow. In this case the balloon will begin to fade as soon as it is released, so the vertical visibility is when the balloon disappears. If the balloon is visible for a considerable distance into the cloud layer the observer should make note of it as it is of importance to aircraft.
The ceiling balloon is a reliable, safe and simple way to get an indication of the height of clouds. However, it does suffer from some disadvantages that the observer must be aware of. Rain and wet snow may slow the ascent of the balloon, giving a falsely high ceiling and high winds and poor visibility may cause the balloon to appear to enter the cloud before it actually does. As the balloon rises at a rate of 140 m/min (460 ft/min) it will take over five minutes for the balloon to reach 700 m (2300 ft). Beyond this height the ability to follow the balloon, even with binoculars, is poor, as even the slightest movement of the eye off the balloon will almost certainly ensure that it vanishes.
At night when it is not practical to use a balloon the ceiling projector is used. However, during twilight it may be impossible to use the ceiling projector and then a pibal (pilot balloon) light may be used. This is a simple flashlight bulb attached to a battery. To charge the battery it is immersed in water for three minutes and then tied to the balloon prior to inflation. These are rarely used today.

Do not hesitate to contact us to review our Meteorological Balloons Prices & Specifications

Pilot Balloons for Sale at FACTORY PRICES for Professionals. Please select from our Product range

Pilot balloons are used by meteorologists to determine the height of the base of clouds above ground level during daylight hours. The pilot balloon can also carry small payloads of up to 75 grams.

How are Pilot Balloons used?

A Pilot balloon is a small, usually red, (fluted) rubber balloon commonly measuring 76 mm (3 in) across prior to inflation, inflated to ~40 cm diameter. After inflation the balloon is taken outside and released. By timing the balloon from release until it enters the cloud a ceiling height can be obtained. When correctly inflated the balloon will rise at rate of 140 m/min (460 ft/min). The bases of clouds are very rarely flat and solid, so the ceiling height is not when the balloon disappears but when the colour begins to fade. The balloon can also be used to measure the vertical visibility into a layer of fog or blowing snow. In this case the balloon will begin to fade as soon as it is released, so the vertical visibility is when the balloon disappears. If the balloon is visible for a considerable distance into the cloud layer the observer should make note of it as it is of importance to aircraft.
The Pilot balloon is a reliable, safe and simple way to get an indication of the height of clouds. However, it does suffer from some disadvantages that the observer must be aware of. Rain and wet snow may slow the ascent of the balloon, giving a falsely high ceiling and high winds and poor visibility may cause the balloon to appear to enter the cloud before it actually does. As the balloon rises at a rate of 140 m/min (460 ft/min) it will take over five minutes for the balloon to reach 700 m (2300 ft). Beyond this height the ability to follow the balloon, even with binoculars, is poor, as even the slightest movement of the eye off the balloon will almost certainly ensure that it vanishes.
At night when it is not practical to use a balloon the ceiling projector is used. However, during twilight it may be impossible to use the ceiling projector and then a pibal (pilot balloon) light may be used. This is a simple flashlight bulb attached to a battery. To charge the battery it is immersed in water for three minutes and then tied to the balloon prior to inflation. These are rarely used today.

Information about Sounding Balloons

Sounding Balloons for Sale at FACTORY PRICES for Professionals. Please select from our Product range

A Sounding balloons, also known as a type of high altitude weather balloon is a balloon which carries instruments aloft to send back information on atmospheric pressure, temperature, and humidity by means of a small, expendable measuring device called a radiosonde. To obtain wind data, they can be tracked by radar, radio direction finding, or navigation systems (such as the satellite based Global Positioning System).

Materials and equipment

The sounding balloon itself produces the lift, and is usually made of a highly flexible latex material (though Chloroprene may also be used). The unit that performs the actual measurements and radio transmissions hangs at the lower end of the string, and is called a radiosonde. Specialized radiosondes are used for measuring particular parameters, such as determining the ozone concentration.
The balloon is usually filled with hydrogen due to lower cost, though helium can be used as a substitute. The ascent rate can be controlled by the amount of gas with which the sounding balloon is filled. Weather balloons may reach altitudes of 40 km (25 miles) or more, limited by diminishing pressures causing the balloon to expand to such a degree (typically by a 100:1 factor) that it disintegrates. In this instance the instrument package is usually lost. Above that altitude sounding rockets are used. After sounding rockets, satellites are used for even higher altitudes.
Major manufacturers of balloons are Totex and Cosmopren of Japan, Pawan Rubber Products (Pawan Exports) of India, Kaysam (now Kaymont), and Scientific Sales, Inc. of the U.S..
Weather balloons are sometimes cited as the cause for unidentified flying object sightings, and are also used for cluster ballooning.

Sounding Balloons Launch time, location, and uses

Weather balloons are launched around the world for observations used to diagnose current conditions as well as by human forecasters and computer models for weather forecasting. About 800 locations around the globe do routine releases, twice daily, usually at 0000 UTC and 1200 UTC. Some facilities will also do occasional supplementary “special” releases when meteorologists determine there is a need for additional data between the 12 hour routine launches in which time much can change in the atmosphere. Military and civilian government meteorological agencies such as the National Weather Service in the US typically launch balloons, and by international agreements almost all the data is shared with all nations.
Specialized uses also exist, such as for aviation interests, pollution monitoring, and research. Examples include pilot balloons (Pibal). Field research programs often use mobile launchers from land vehicles as well as ships and aircraft (usually dropsondes in this case).

Do not hesitate to contact us to review our Meteorological Balloons Prices & Specifications

CANDLES

1. No tears – Wax with Wick inside

2. Purity and Firmness higher than ordinary candles

3. Long burning time (40 minutes)

LANTERNS:

1. Made of thin Cardboard and Paper

2. High: 120mm x Dia: 100mm / Handle: 110mm with thin wire

The Pilot Balloons Candles and Lanterns are used for upper wind mesurement during pilot balloons ascent at night.

When released into the armosphere with a balloon inflated with hydrogen, the candle and lantern provide an illumination for tracking with a theodolite. The Wind speed and direction are then computed using electronic calculator when the azimuth and elevation readings are taken at successive intervals of time.

Please Contact us for more Information!
